Pinch Strip Switch: Installation

NOTE: LH side shown, RH side similar.

  1. 1.

    Route the pinch strip switch electrical connector through the liftgate and install the rubber grommet.
GFD37273Courtesy of FORD MOTOR COMPANY

  1. 2.

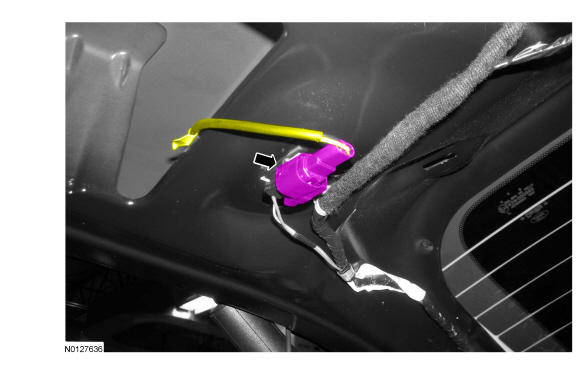

    Connect the electrical connector.
GFD37271Courtesy of FORD MOTOR COMPANY

  1. 3.

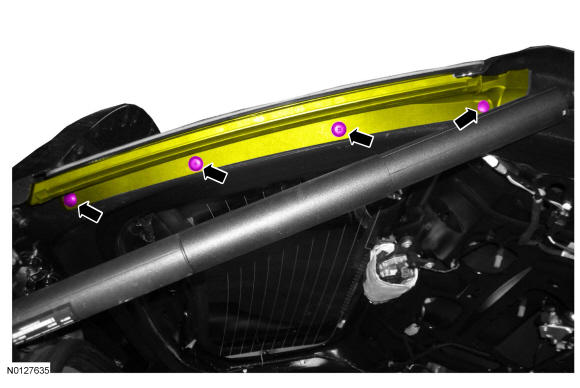

    Install the 3 pin-type retainers and the push pin.
GFD37272Courtesy of FORD MOTOR COMPANY

  1. 4.

    Install the liftgate trim panel. REFER to Interior Trim and Ornamentation .
