Bumper Cover - Rear: Removal

1.

Remove the rear fender moulding. REFER to Exterior Trim and Ornamentation .

2.

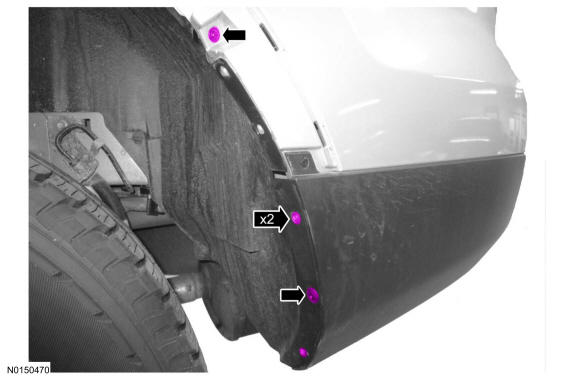

NOTE: LH side shown in illustration, RH side similar.

Remove the 3 screws and the pin-type retainer.

GFD37779

Courtesy of FORD MOTOR COMPANY

3.

Remove the rear lamp assemblies. REFER to Exterior Lighting .

4.

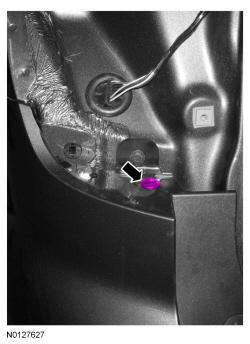

NOTE: LH side shown in illustration, RH side similar.

Remove the 2 bumper cover pin-type retainers located in the rear lamp openings.

GFD37780

Courtesy of FORD MOTOR COMPANY

5.

NOTE: LH side shown in illustration, RH side similar.

Remove the 2 bumper cover pin-type retainers along the top of the bumper cover.

GFD37781

Courtesy of FORD MOTOR COMPANY

6.

Remove the 2 lower bumper cover screws.

GFD37782

Courtesy of FORD MOTOR COMPANY

7.

Disconnect the backup sensor electrical connector and remove the pin-type retainers.

GFD37783

Courtesy of FORD MOTOR COMPANY

8.

Remove the bumper cover.
