Cowl Panel: Removal

WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS

NOTE: LH side shown in illustration, RH side similar.

Courtesy of FORD MOTOR COMPANY

3.

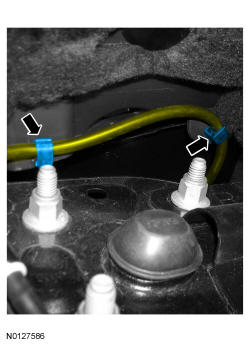

NOTE: LH side shown in illustration, RH side similar.

Release the cowl panel from the LH and RH side pin-type retainer clips.

Courtesy of FORD MOTOR COMPANY

4.

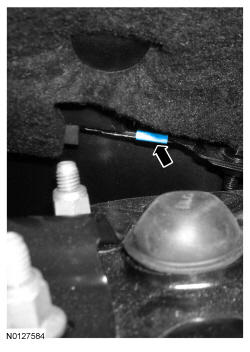

Remove the washer hose from the retainer clips on the RH side of the vehicle and position aside.

Courtesy of FORD MOTOR COMPANY
