Removal And Installation: Fender: Installation

1.

Position the fender and A-pillar baffle to the vehicle.

2.

NOTE: LH shown in illustration, RH similar.

Loosely install the 2 top fender-to-apron bolts.

GFD37218

Courtesy of FORD MOTOR COMPANY

3.

NOTE: LH shown in illustration, RH similar.

Loosely install the 2 front fender-to-apron bolts.

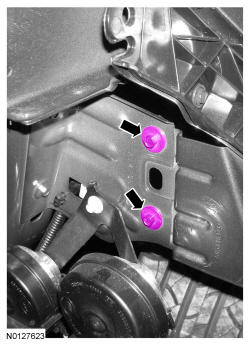

GFD37217

Courtesy of FORD MOTOR COMPANY

4.

NOTE: LH shown in illustration, RH similar.

Loosely install the fender-to-cowl bolt.

GFD37216

Courtesy of FORD MOTOR COMPANY

5.

NOTE: LH shown in illustration, RH similar.

Loosely install the 2 fender-to-rocker panel bolts.

GFD37214

Courtesy of FORD MOTOR COMPANY

6.

Adjust the fender to specification. REFER to Body Repairs , Component Description.

NOTE: LH shown in illustration, RH similar.

7.
Apply flexible foam repair material to the fender, fender baffle and A-pillar seam.

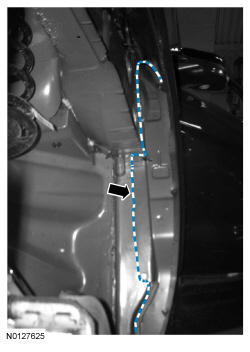

GFD37219

Courtesy of FORD MOTOR COMPANY

8.

Tighten all fender fasteners.
- Tighten all to 12 Nm (106 lb-in).

9.

Install the fender splash shield. Refer to Fender Splash Shield .

10.

Install the windshield applique. REFER to Exterior Trim and Ornamentation .

11.

NOTE: RH shown in illustration, LH similar.

Install the cowl panel grille filler panel.

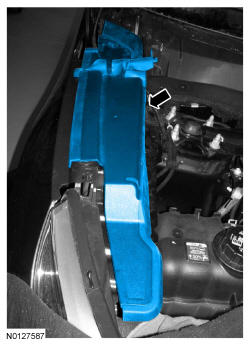

GFD37213

Courtesy of FORD MOTOR COMPANY

12.

Install the cowl panel grille. Refer to Cowl Panel Grille .
