Fender Splash Shield: Removal
NOTE:
LH side shown in illustration, RH side similar.
- 2.

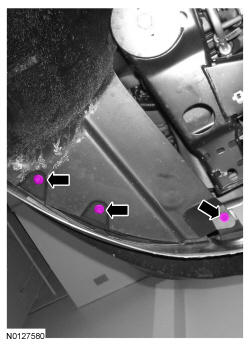

Remove the 3 pin-type retainers at the rear of the fender moulding.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the 3 rear fender splash shield pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Remove the 4 middle fender splash shield pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Remove the 3 lower fender splash shield bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Remove the 4 front fender splash shield screws.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Position aside the fender moulding and remove the fender splash shield screw.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove the 3 upper fender splash shield pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Remove the fender splash shield.
