Fender Splash Shield: Installation
NOTE:
LH side shown in illustration, RH side similar.
- 1.
Position the fender splash shield to the vehicle.
- 2.

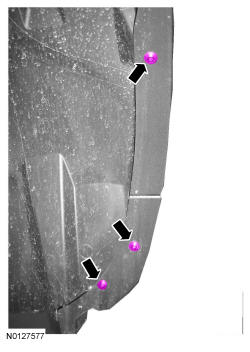

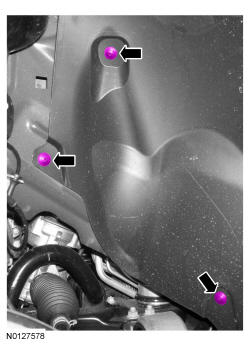

Install the 3 upper fender splash shield pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

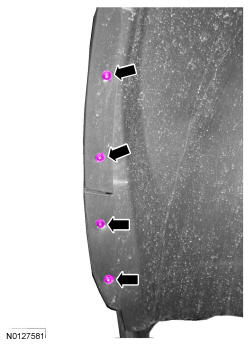

Install the 4 middle fender splash shield pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Install the 3 rear fender splash shield pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

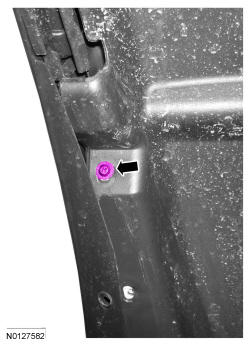

Position aside the fender moulding and install the fender splash shield screw.
- Tighten to 3 Nm (27 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 6.

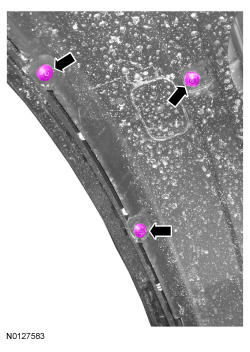

Install the 3 fender moulding pin-type retainers at the rear of the moulding.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

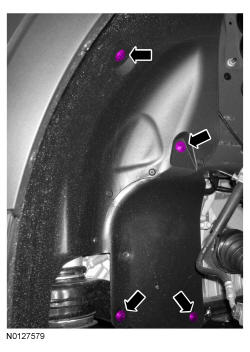

Install the 4 front fender splash shield screws.
- Tighten to 3 Nm (27 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Install the 3 lower front fender splash shield bolts.
- Tighten to 3 Nm (27 lb-in).
