Spoiler
>>
Removal
Removal And Installation: Spoiler: Removal
1.

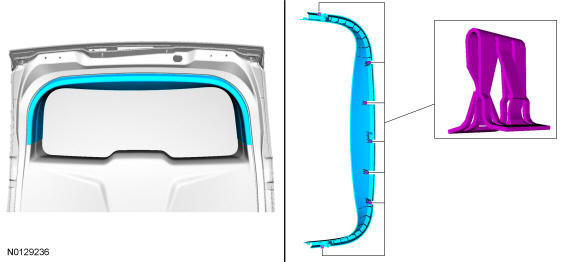

Disconnect the 7 liftgate moulding clips and remove the liftgate moulding.
Courtesy of FORD MOTOR COMPANY
2.
Disconnect the high mounted stoplamp electrical connector.
Courtesy of FORD MOTOR COMPANY
3.

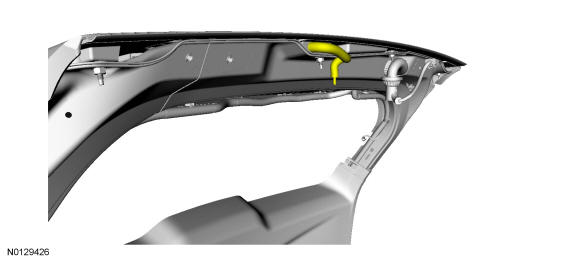

Disconnect the rear window washer hose.
Courtesy of FORD MOTOR COMPANY
4.

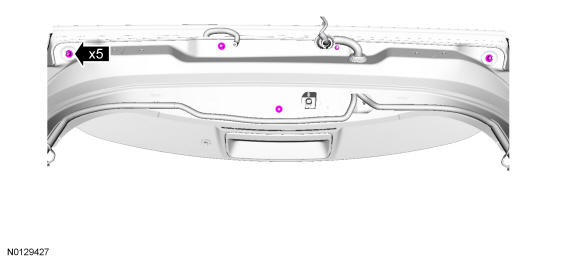

Remove the 5 spoiler nuts.
Courtesy of FORD MOTOR COMPANY
5.

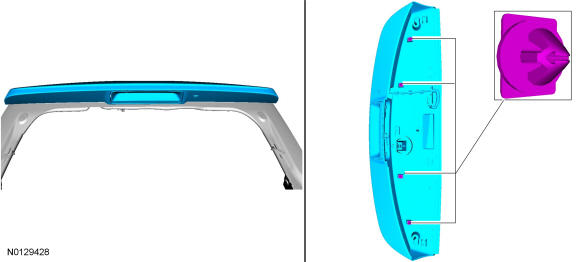

Pushing up firmly on the rear of the spoiler, disconnect the 4 spoiler clips and remove the spoiler.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
