Door Trim Panel - Front: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

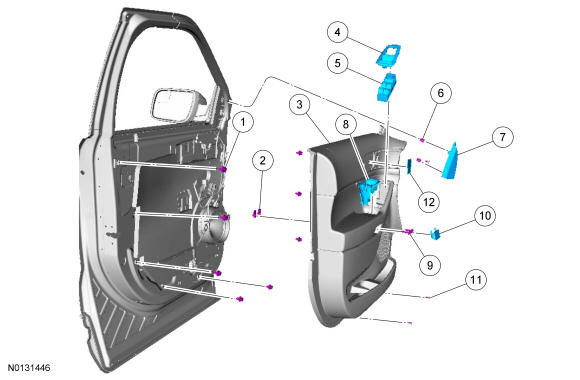

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W713297 | Front door trim panel retaining clip (8 required) | - | - | - |
| 2 | W520832 | Front door trim panel nut (2 required) | - | - | - |
| 3 | 23942 / 23943 | Front door trim panel (Right Hand (RH) / LH) | - | - | - |
| 4 | 14524 / 14525 | Front door window switch bezel (Right Hand (RH) / LH) | - | - | - |
| 5 | 14529 | Front door window switch (Right Hand (RH) / LH) | - | - | - |
| 6 | W710338 | Sail panel clip (3 required) | - | - | - |
| 7 | 17K709 | Sail panel (Right Hand (RH) / LH) | - | - | - |
| 8 | 22634 / 22635 | Front door trim panel handle cup (Right Hand (RH) / LH) | - | - | - |
| 9 | W505424 | Front door trim panel bolt (2 required) | 7 Nm (62 lb-in) | - | - |
| 10 | 24056 / 24057 | Front door trim panel bolt cover (Right Hand (RH) / LH) | - | - | - |
| 11 | W708392 | Front door trim panel screw (2 required) | 1 Nm (9 lb-in) | - | - |
| 12 | 22620 | Front interior door handle bolt cover | - | - | - |
