Subframe - Front: Installation

NOTE: Suspension fasteners are critical parts that affect performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1.

Using the 300-OTC1585AE, raise and align the subframe assembly to the witness marks made during removal.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: RH shown in illustration, LH similar.

Install the 2 new front subframe forward bolts.
- Tighten to 200 Nm (148 lb-ft).

Courtesy of FORD MOTOR COMPANY

3.

NOTE: RH shown in illustration, LH similar.

Position the front subframe brackets and install the 4 new front subframe bracket bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: RH shown in illustration, LH similar.

Install the 2 new front subframe rearward bolts.
- Tighten to 200 Nm (148 lb-ft).

5.

NOTE: RH shown in illustration, LH similar.

Tighten the 4 new front subframe bracket bolts.
- Tighten to 55 Nm (41 lb-ft).

Courtesy of FORD MOTOR COMPANY

6.

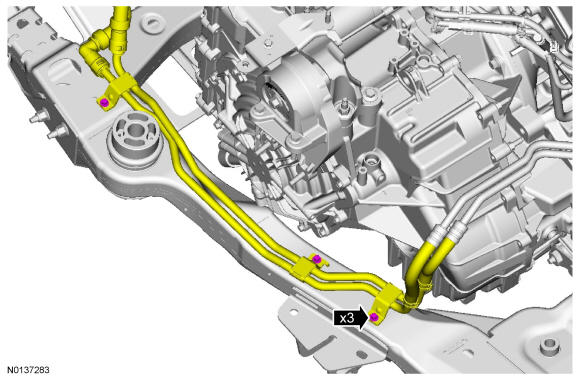

If equipped, install the 3 PTU cooler line mounting bracket bolts.
- Tighten to, 10 Nm (89 lb-in).

Courtesy of FORD MOTOR COMPANY

7.

If equipped, install the cooler hose retainer on the subframe.

Courtesy of FORD MOTOR COMPANY

8.

If equipped, install the roll restrictor-to-subframe bolt.
- Tighten to 90 Nm (66 lb-ft).

Courtesy of FORD MOTOR COMPANY

9.

NOTE: FWD shown in illustration, AWD similar.

If equipped, install the rear roll restrictor-to-subframe bolt.
- Tighten to 103 Nm (76 lb-ft).

Courtesy of FORD MOTOR COMPANY

10.

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected from the steering gear or damage to the clockspring may occur. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. CLOCKSPRING .

Install the steering intermediate shaft onto the steering gear and install a new bolt.
- Tighten to 20 Nm (177 lb-in).

Courtesy of FORD MOTOR COMPANY

11.

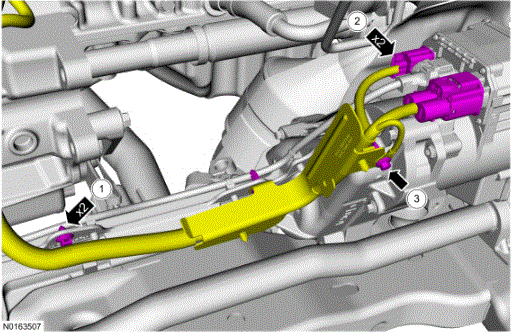

Position the harness and clip the EPAS harness pushpins.
Connect the 2 EPAS electrical connectors.
Install the bolts.

Tighten to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR CO.

12.

If equipped, position the flap heat shield and install the flap heat shield bolt.
- Tighten to 11 Nm (97 lb-in).

13.

NOTE: RH shown in illustration, LH similar.

Position both ball joints into the wheel knuckles. Install 2 new ball joint nuts.
- Tighten to 200 Nm (148 lb-ft).

Courtesy of FORD MOTOR COMPANY

14.

NOTE: The hex-holding feature can be used to prevent turning of the stud while installing the outer tie-rod nuts.

NOTE: RH shown in illustration, LH similar.

Position both outer tie-rod ends to the wheel knuckles and install 2 new outer tie-rod end nuts.
- Tighten to 150 Nm (111 lb-ft).

Courtesy of FORD MOTOR COMPANY

15.

Install the 4 new stabilizer bar bracket-to-front subframe bolts.
- Tighten to 55 Nm (41 lb-ft).

16.

Vehicles equipped with 3.5L GTDI engine, install the engine exhaust Y-pipe. EXHAUST Y-PIPE -- 3.5L TI-VCT .Vehicles equipped with 3.5L GTDI engine, install the RH and LH exhaust flexible pipes. EXHAUST FLEXIBLE PIPE -- LH, 3.5L GTDI , or EXHAUST FLEXIBLE PIPE -- RH, 3.5L GTDI .

17.

NOTE: RH shown in illustration, LH similar.

Position the RH and LH engine splash shields and install the 4 lower pin-type retainers.

Courtesy of FORD MOTOR COMPANY

18.

If equipped, install the underbody shield and the 4 retainers.

Courtesy of FORD MOTOR COMPANY

19.

If equipped, install the underbody air duct and the 3 retainers.

Courtesy of FORD MOTOR COMPANY

20.

Install the wheels and tires. INSTALLATION .
