Subframe Bushings - Rear Differential, Rear: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

SPECIAL TOOL(S)

Courtesy of FORD MOTOR COMPANY	Remover/Installer, Rear Drive Unit Bushing (60 Mm) 204-618
Courtesy of FORD MOTOR COMPANY	Remover/Installer, Rear Drive Unit Bushing (70 Mm) 204-616

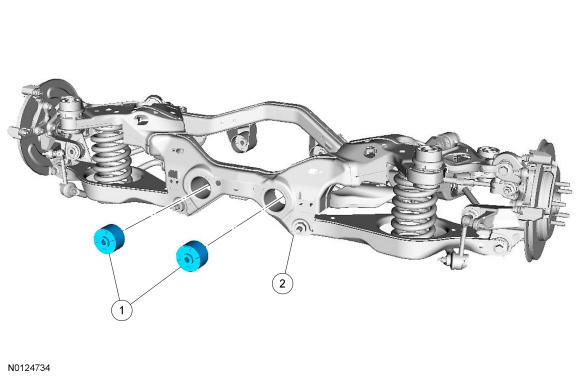

Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	4B425	Rear Drive Unit(RDU) bushing - rear bushings (2 required)
2	5R003	Rear Subframe Assembly
