Exterior Mirror: Removal

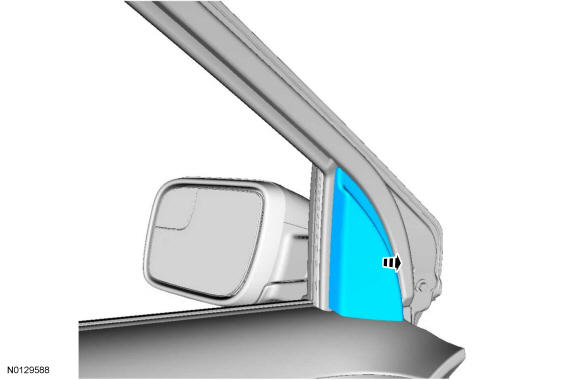

  1. 1.

GFD37350Courtesy of FORD MOTOR COMPANY

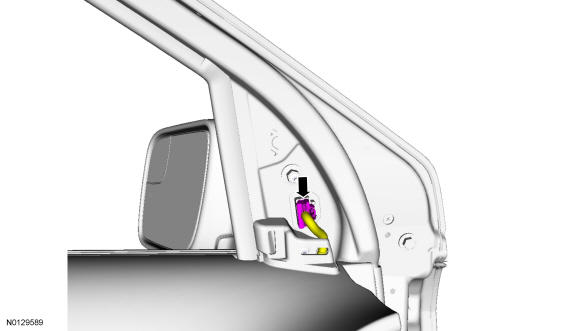

  1. 2.

GFD37351Courtesy of FORD MOTOR COMPANY
    NOTE: The assembly aid hook is used only for production purposes. If the hook is broken or missing, the existing mirror can be installed without the assembly aid hook.

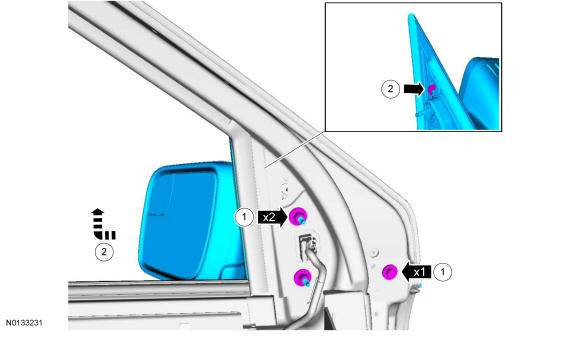

  1. 3.

    1. 1.

      11 Nm (97 lb-in)
GFD37352Courtesy of FORD MOTOR COMPANY
