Exterior Mirror Cover: Removal

  1. 1.

    Remove the exterior mirror glass. Refer to Exterior Mirror Glass .

  1. 2.

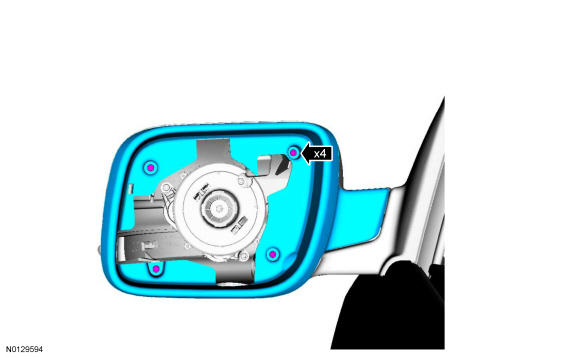

    Remove the 4 exterior mirror bezel screws and bezel.
GFD37353Courtesy of FORD MOTOR COMPANY

  1. 3.

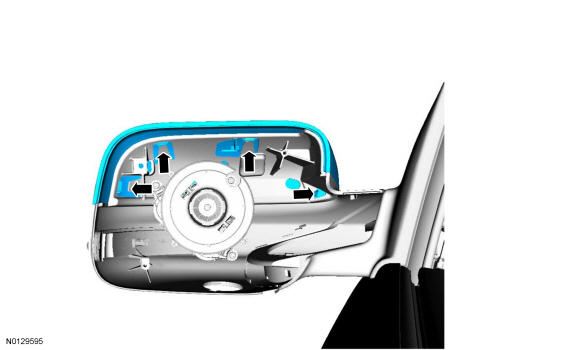

    Press the 4 tabs and remove the exterior mirror cover.
GFD37354Courtesy of FORD MOTOR COMPANY
