Exterior Mirror Glass: Removal

WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

1.

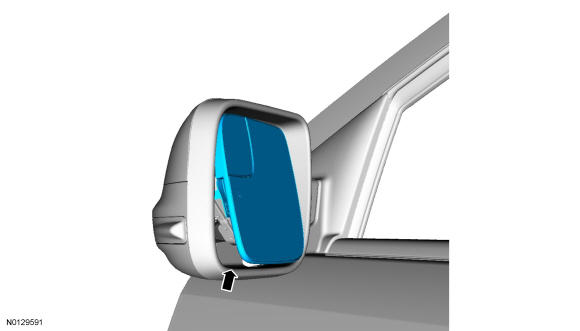

Position the exterior mirror glass to the full upward and inward position.

Courtesy of FORD MOTOR COMPANY

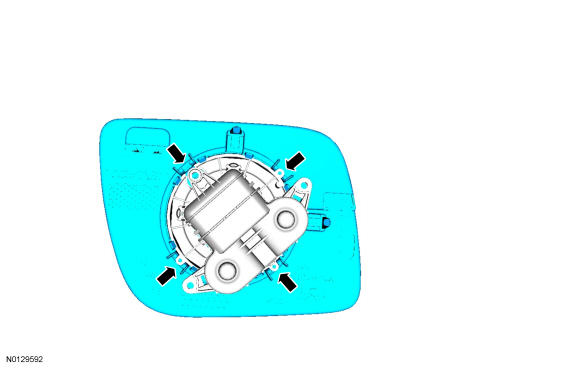

NOTE: LH mirror and motor removed from the housing and from the back to show location of clips and placement of screwdriver.

2.
Remove the exterior mirror glass using a screwdriver to release the tabs starting at the lower outboard side of mirror and continuing around the mirror until all 4 tabs are released.

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the electrical connectors.
