- 1.

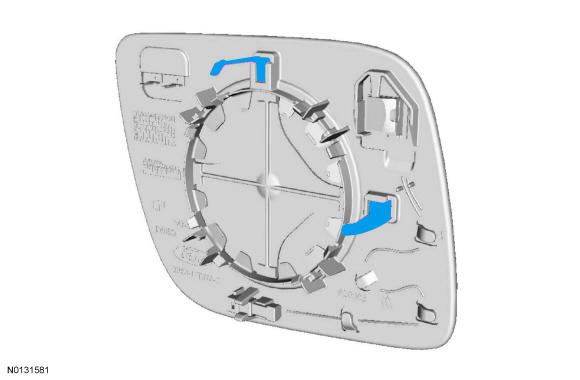

If required, install the 2 dampners on the LH exterior mirror glass.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
WARNING:
Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.
Connect the electrical connectors.
- 3.
Position the exterior mirror glass onto the exterior mirror motor.
NOTE:
An audible click will be heard during installation.
- 4.
Firmly press the exterior mirror glass until it snaps onto the exterior mirror motor.
- 5.
Rotate the exterior mirror glass in all directions after the installation to make sure that all of the exterior mirror glass retaining clips are completely fastened.
