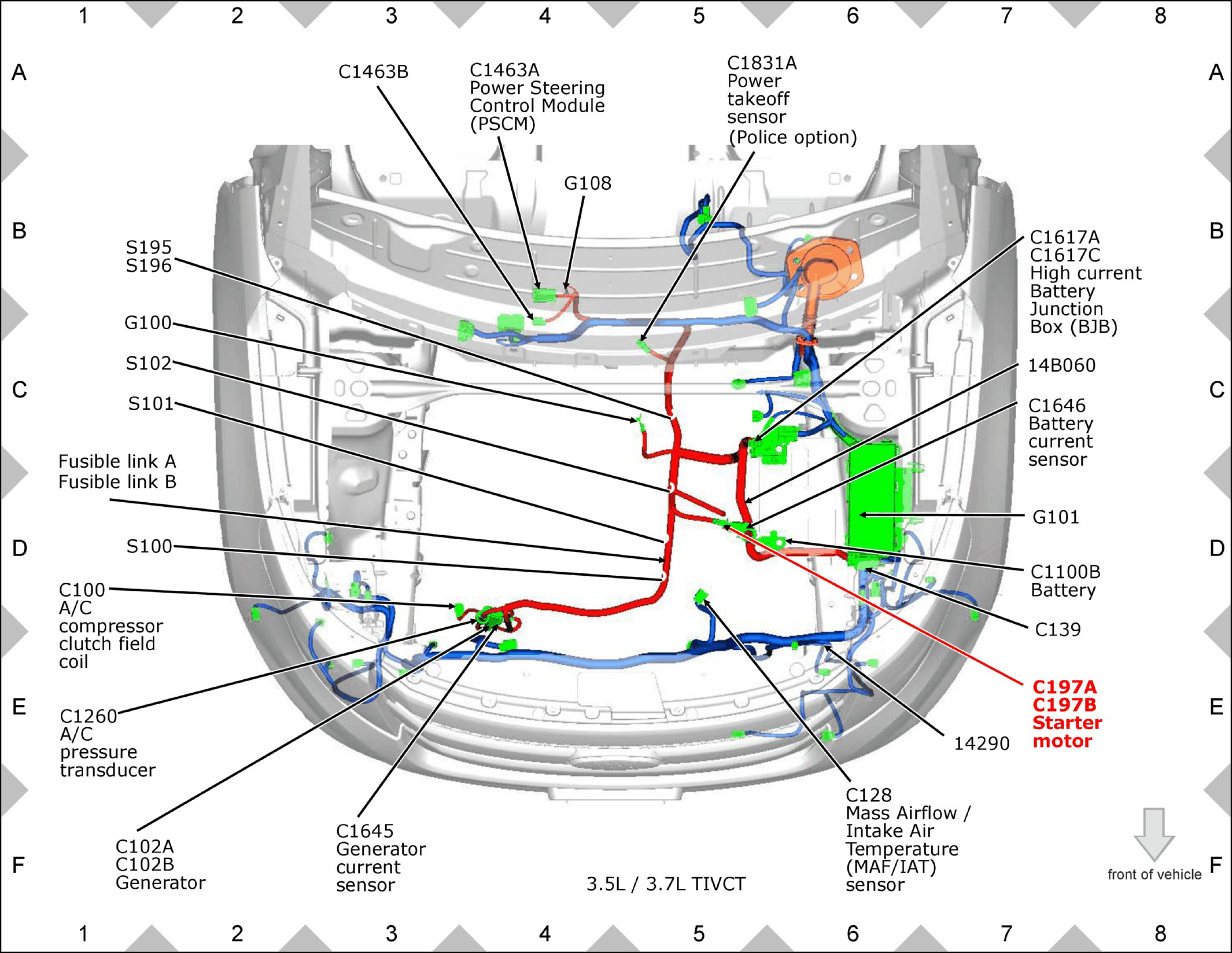

C197B (3.5L or 3.7L TIVCT) Left hand side of engine on bottom

GFDW13375Courtesy of FORD MOTOR COMPANY
