Explorer Limited, 3.5L Eng VIN 8, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts
>>
Component Location Charts
>>

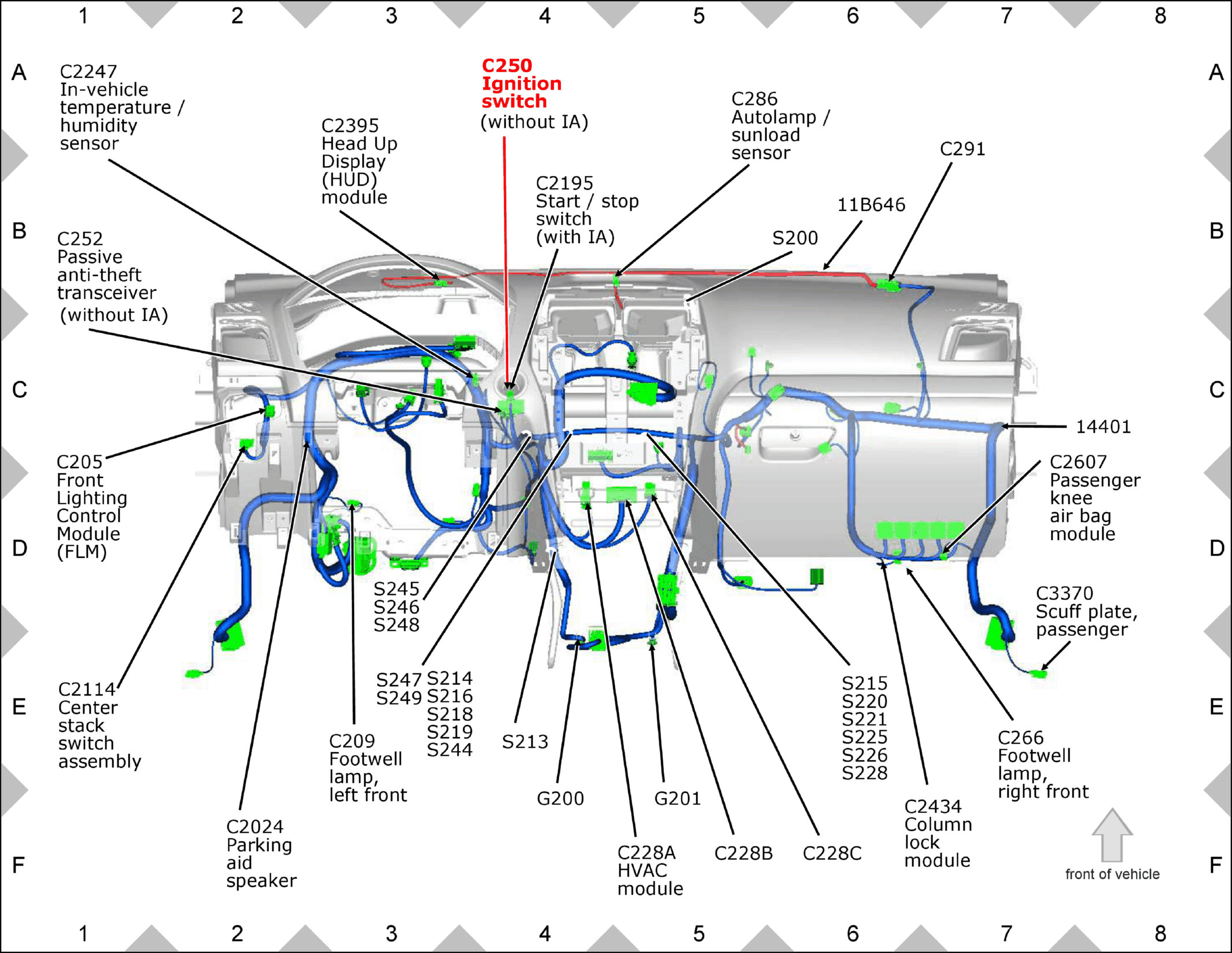

C250 (without IA) Center of instrument panel, left of radio opening
C250 (without IA) Center of instrument panel, left of radio opening
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
