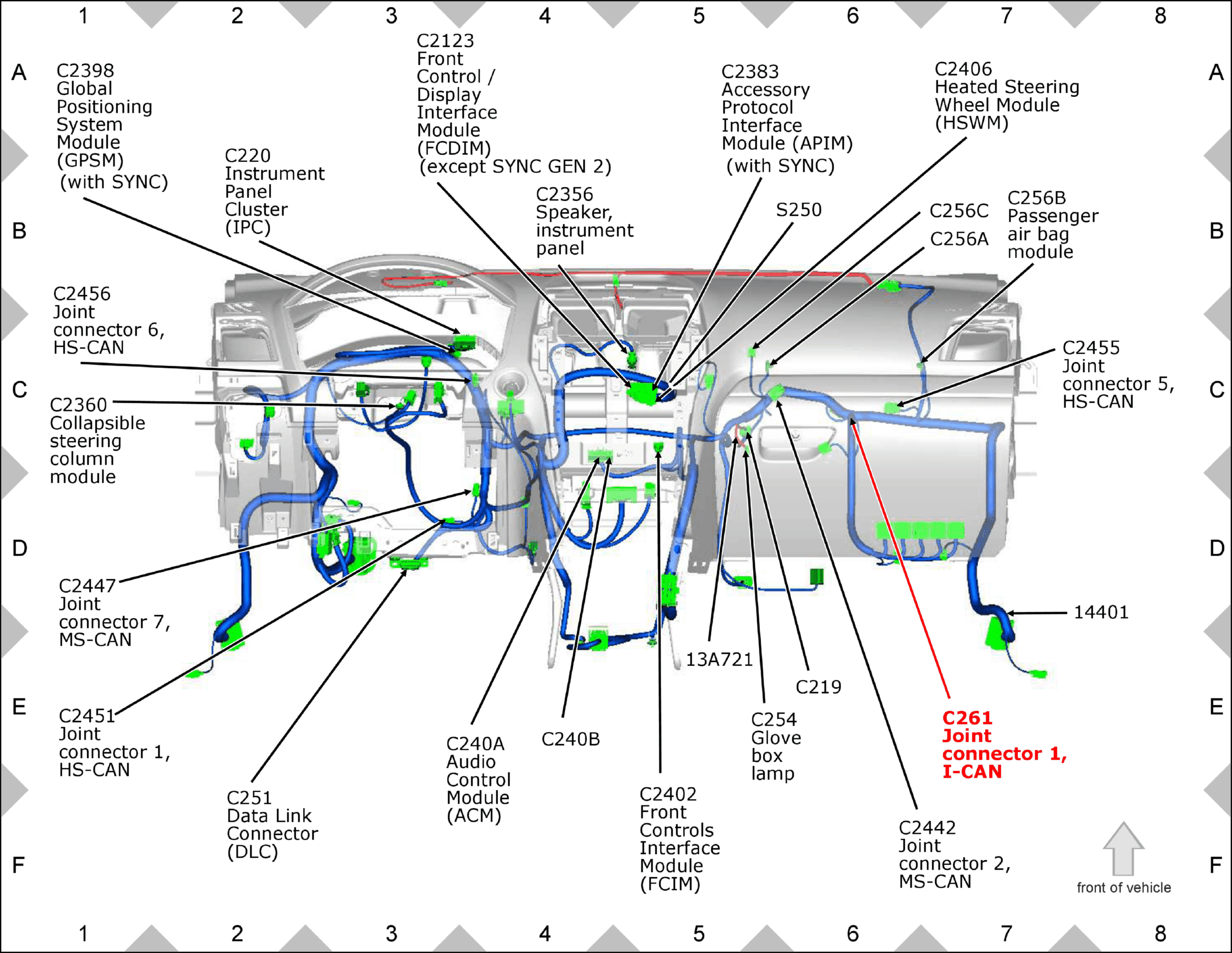

C261 Behind right hand side of instrument panel, above center of glove box

GFDW11341

Courtesy of FORD MOTOR COMPANY
