Home >> Ford >> 2015 >> Explorer Limited, 3.5L Eng VIN 8, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts >> Component Location Charts >> C2033 (Police option) Near bottom of center console

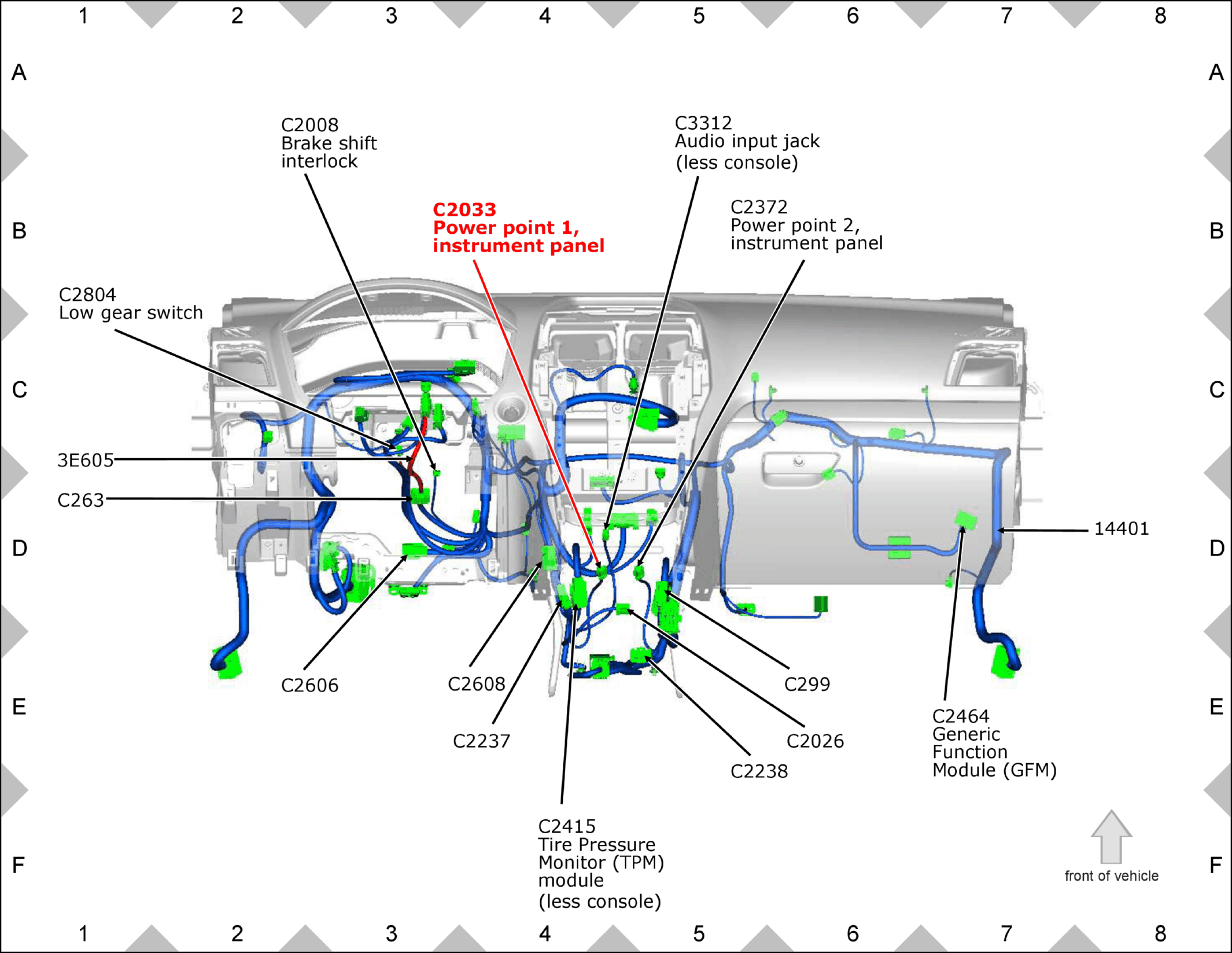

C2033 (Police option) Near bottom of center console

GFDW11599

Courtesy of FORD MOTOR COMPANY
