Explorer Limited, 3.5L Eng VIN 8, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Component Harness Location Charts
>>
Component Location Charts
>>

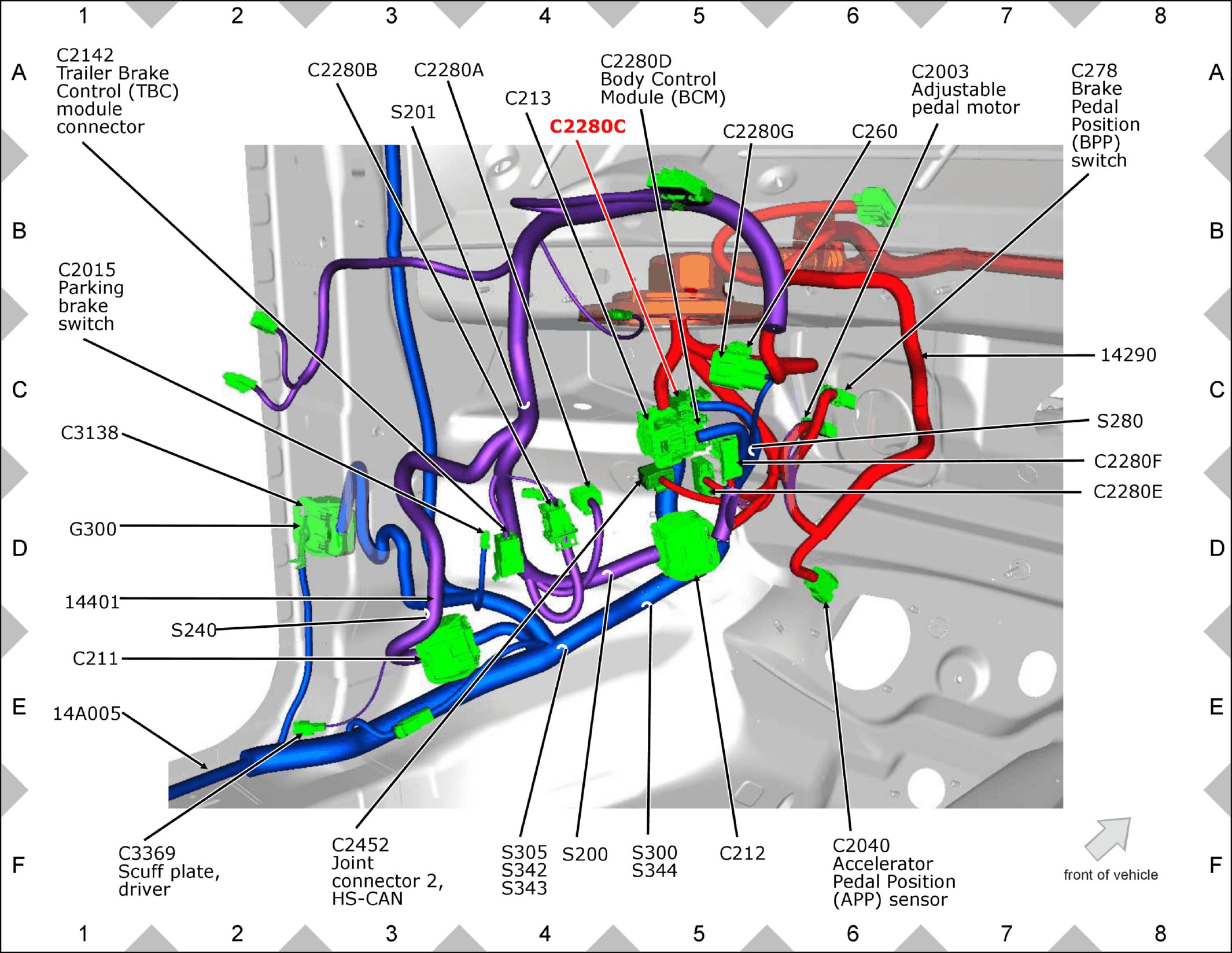

C2280C Near LH kick panel
C2280C Near LH kick panel
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
