Center Console: Install

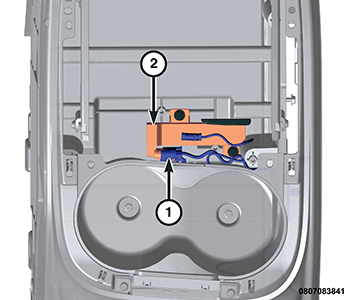

GC0178076Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wiring harness connector (2) to the LF antenna (1).

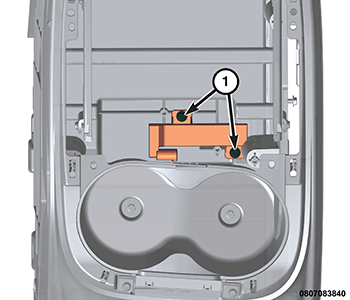

    GC0177419Courtesy of CHRYSLER GROUP, LLC
  2. Position the LF antenna to its installed position and secure the antenna.

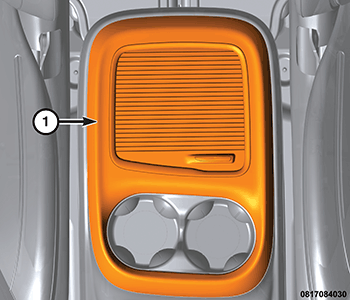

    GC0177885Courtesy of CHRYSLER GROUP, LLC
  3. Install the tambor assembly.
  4. Connect the wiring harness connector to the center console top bezel with tambor bin door.
  5. Snap the center console top bezel with tambor bin door to the center console.
  6. Connect the negative battery cable.
