Removal And Installation: Removal

  1. Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.
  2. Remove the seat back panel. Refer to PANEL, SEAT BACK, FRONT, REMOVAL AND INSTALLATION .

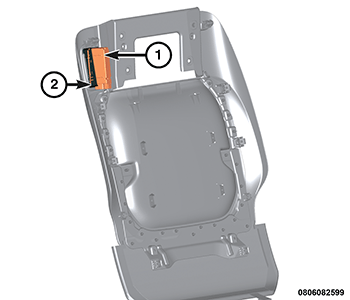

    GC0177288Courtesy of CHRYSLER GROUP, LLC
  3. Using a suitable tool, release the four media center hub retaining tabs and carefully remove the media center hub (1) from the bezel (2).
