Removal And Installation: Installation

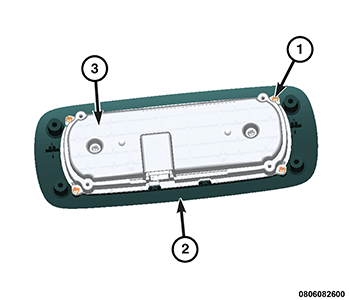

GC0178107Courtesy of CHRYSLER GROUP, LLC
  1. Position the RCCC (3) to the RCCC bezel (2) and install the four screws (1). Tighten the screws securely.

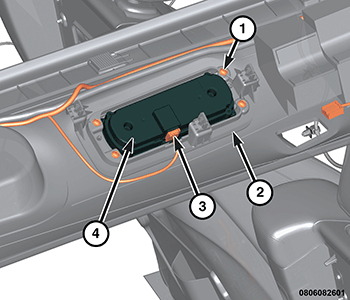

    GC0177908Courtesy of CHRYSLER GROUP, LLC
  2. Position the RCCC and RCCC bezel (4) to the headliner (2).
  3. Connect the wire harness connector (3) to the RCCC (4).
  4. Install the four headliner (2) to RCCC (4) screws (1). Tighten the screws securely.
  5. Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
