Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
    GC0177838Courtesy of CHRYSLER GROUP, LLC

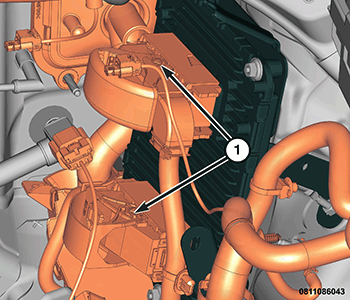

  3. Disconnect the electrical connections (1) from the Powertrain Control Module (PCM).
    GC0178213Courtesy of CHRYSLER GROUP, LLC

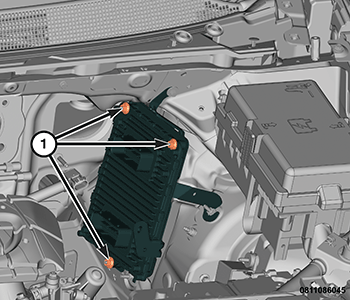

  4. Remove the three nuts (1) securing the PCM to the PCM bracket.
  5. Lift the PCM off of the bracket and remove the PCM from the engine compartment.
