Removal And Installation: Removal

WARNING:

Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Move the passenger front seat all the way rearward.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

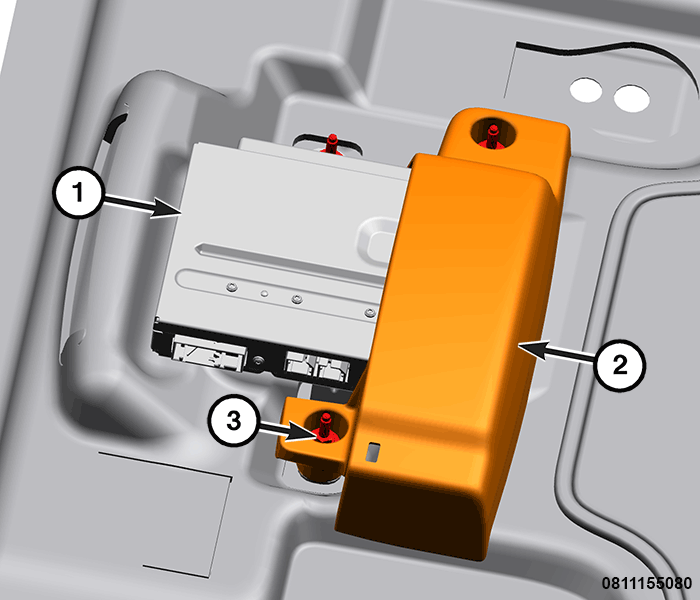

    GC0188605Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two nuts (3) from Video Routing Module (VRM) cover (2).

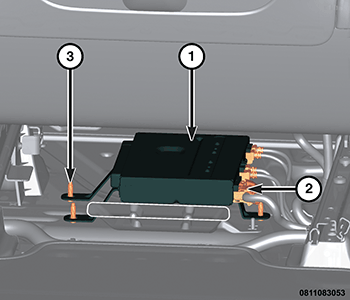

    GC0177567Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the five VRM wire harness connectors (2).
  5. Remove the VRM to body nut (3).
  6. Remove the VRM (1) from the vehicle.
