Removal And Installation: Installation

GC0188609Courtesy of CHRYSLER GROUP, LLC
  1. Position the sun sensor (1) into the instrument panel courtesy lamp. Make sure the retainer clips (2) are fully latched.

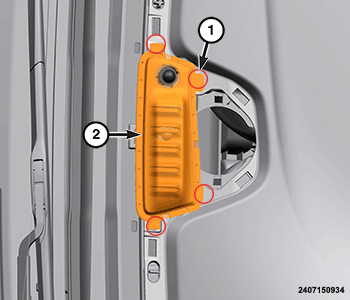

    GC0188582Courtesy of CHRYSLER GROUP, LLC
  2. Position the instrument panel courtesy lamp over the instrument panel, connect the wire harness connectors and install the courtesy lamp (2) into the instrument panel. Make sure the retainer clips (1) are fully seated.
  3. Install the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
