Removal And Installation: Installation

NOTE:

The cabin air filter is labeled with "Airflow" and an arrow to indicate air flow direction through the filter. This arrow should always be oriented towards the floor of the vehicle. Make sure to properly install the cabin air filter. Failure to properly install the filter will result in the need to replace the filter sooner than required by design.

NOTE:

Instrument panel removed for clarity.

Courtesy of CHRYSLER GROUP, LLC

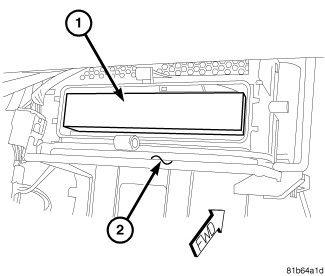

Install the cabin air filter (1) into the filter opening in the HVAC air distribution housing (2). Insert the cabin air filter directly into the housing with the arrow on the filter pointing to the floor.

Courtesy of CHRYSLER GROUP, LLC

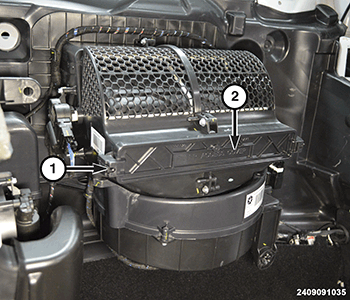

Position the cabin air filter cover (2) to the air distribution housing and engage the two retaining tabs (1) that secure the cover to the housing. Make sure the retaining tabs are fully engaged.

Courtesy of CHRYSLER GROUP, LLC
Position the hush panel (1) into the instrument panel and install the three hush panel fasteners (2).
Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
