Front Outer Air Outlets: Installation

NOTE:

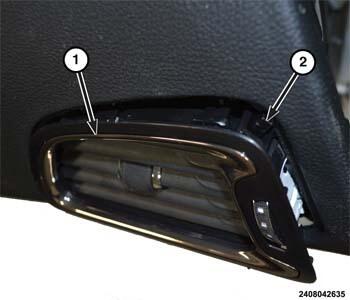

Right side air outlet shown in illustration. Left side air outlet similar.

GC0162788Courtesy of CHRYSLER GROUP, LLC
  1. Position the air outlet (1) to the opening in the instrument panel and align the outlet to the instrument panel duct.
  2. Engage the retaining tabs (2) that secure each air outlet to the instrument panel. Make sure the retaining tabs are fully engaged.
