Tire Identification
Tire type, size, load index and speed rating are encoded in the letters and numbers imprinted on the side wall of the tire. Refer to the Tire Identification chart to decipher the code. For example purposes, the tire size P225/60 R 16 97 T is used in the chart. An All Season type tire will also have either M + S, M AND S, or M - S (indicating mud and snow traction) imprinted on the side wall. An Extra or Light Load marking "XL" or "LL" may also be listed on the sidewall. The absence of an "XL" or "LL" marking infers a standard load tire.
TIRE IDENTIFICATION
| Reading Tire Codes | ||
|---|---|---|
| P | TIRE TYPE (Not present on all tires) | P - Passenger |
| T - Temporary | ||
| C - Commercial | ||
| LT - Light Truck | ||
| 225 | SECTIONAL WIDTH | SHOWN IN MILLIMETERS |
| 60 | ASPECT RATIO | SHOWN IN PERCENTAGE* |
| R | CONSTRUCTION TYPE | R - RADIAL |
| B - BIAS BELTED | ||
| D - DIAGONAL (BIAS) | ||
| 16 | WHEEL DIAMETER | SHOWN IN INCHES |
| 97 | LOAD INDEX | ** |
| T | SPEED RATING | ** |

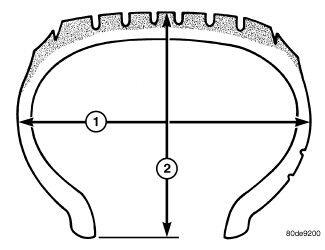

| 1 - SECTIONAL WIDTH |
| 2 - SECTIONAL HEIGHT |
NOTE:
* Height (2) ÷ Width (1) = Aspect Ratio.
NOTE:
** Consult the tire manufacturer regarding any questions on tire specifications or capabilities.
