Removal And Installation: Installation
NOTE:
Position the hub so that the stub being reinstalled is positioned between the two mounting holes for the caliper bracket.

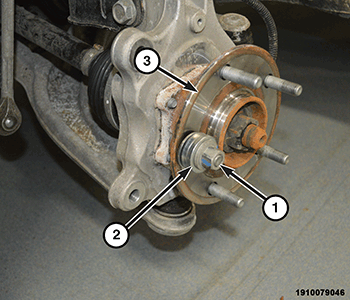

- Install the wheel stud (1) into the flange (3).
- Install three proper sized washers onto the stud, then install a lug nut with the flat side of the nut against the washer (2).
- Tighten the lug nut until the stud is pulled into the hub flange. Verify that the stud is properly seated into the flange.
- Remove the lug nut and washers (1, 2).
- Install the brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
