Description And Operation: Description

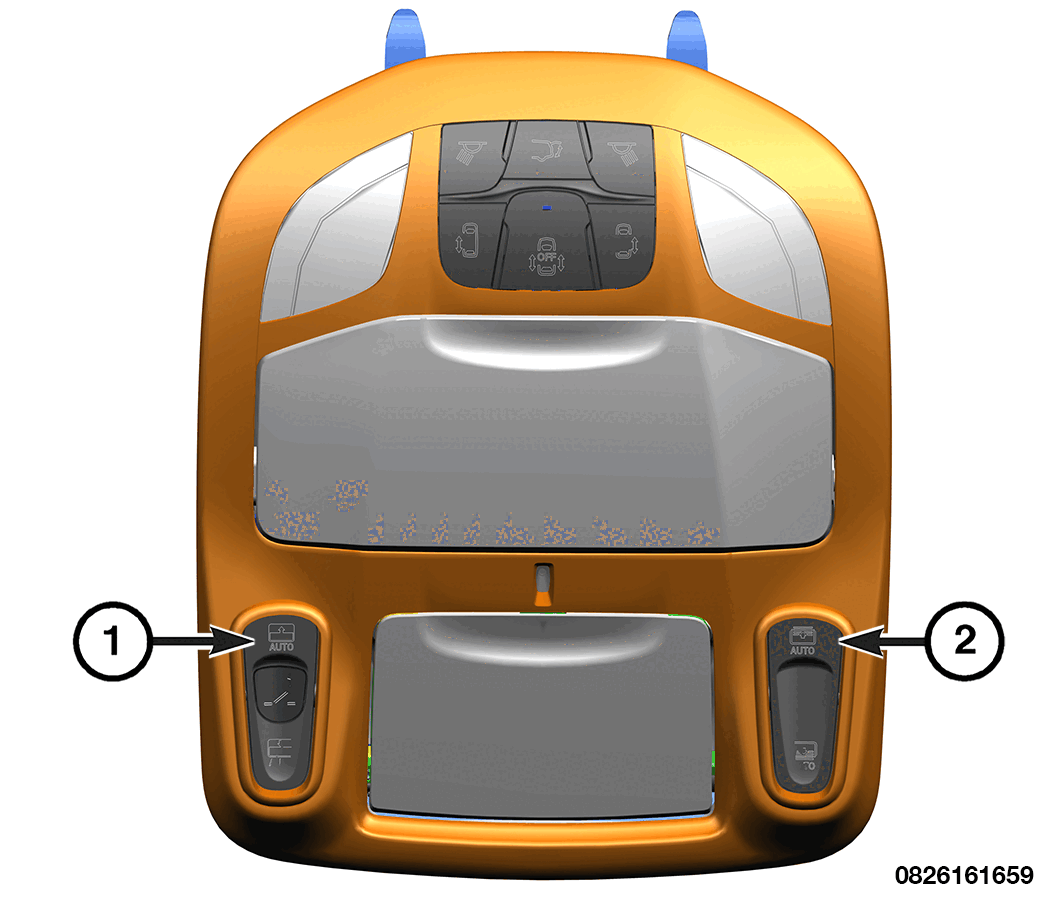

Vehicles equipped with a power sunroof have a power sunroof switch (1) and a power sunshade switch (2) mounted in the overhead console located in the headliner just forward of the sunroof opening.
The power sunroof switch is a combination rocker and push button switch. The switch rocker and push button are clearly identified by either text or icons indicating their functions. The three functions are from front-to-back: CLOSE, VENT, and OPEN.
The power sunshade switch is a rocker switch. The two functions are CLOSE and OPEN.
The housing also includes an integral connector receptacle that connects each switch to the vehicle electrical system through a dedicated take out and connector of the sunroof wire harness.
The power sunroof switch or the power sunshade switch cannot be repaired and, if ineffective or damaged, the Overhead Console (OHC) must be replaced.
