Rear Wiper Blade: Installation

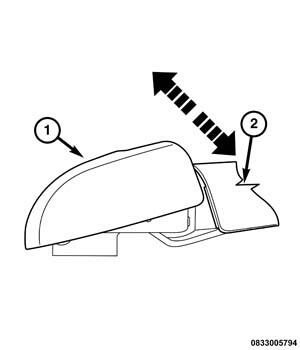

- Lift the rear wiper arm pivot cap (1) upward to allow the rear wiper arm to be raised off the glass.NOTE:
The rear wiper arm cannot be raised to its over-center hinge position unless the pivot cover is raised first.
- Lift the rear wiper arm (2) to its over-center hinge position and off the liftgate glass.

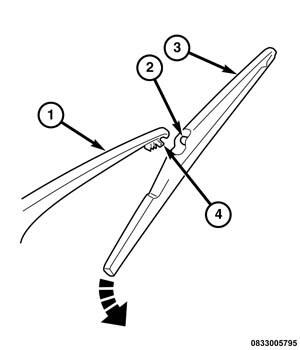

- Position the rear wiper blade (3) with the pivot pin (2) aligned with the opening of the receptacle (4) on the tip of the wiper arm (1).
- Using hand pressure, press the wiper blade pivot pin firmly and evenly to the wiper arm receptacle until it snaps in place.
- Lower the wiper blade to the glass and snap the pivot cover back in place.
