Rear Washer Nozzle: Description

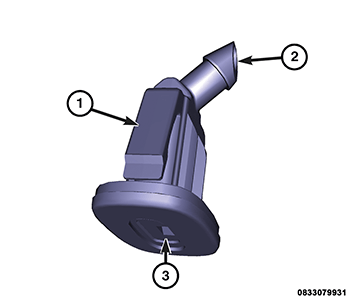

The fluidic rear washer nozzle is constructed of molded plastic. The rear washer nozzle is secured by two integral latch features (1) within a dedicated mounting hole located in the rear spoiler above the liftgate glass. The nozzle has a resilient sealing surface where it rests against the spoiler panel.
The rear washer nozzle orifice (3) is oriented downward towards the liftgate glass. The washer plumbing with check valve fitting (2) is concealed within the rear spoiler.
The rear washer nozzle cannot be adjusted or repaired. If ineffective or damaged, the entire nozzle must be replaced.
