Filler Neck: Removal

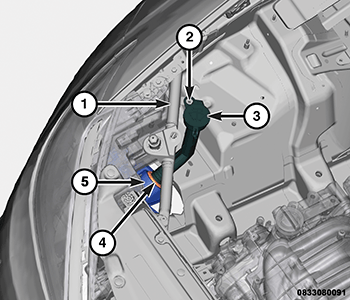

- Locate the filler neck (3) of the washer reservoir (5) in the right front corner of the engine compartment.
- Observe the level of the washer fluid through the translucent filler neck and reservoir. If the washer fluid level is above the base of the filler neck, siphon the washer fluid into a clean container for reuse until it is below the base of the filler neck.
- Remove the screw (2) of the filler neck from the front fascia support bracket (1).
- Use a back and forth twisting action to disengage the base of the filler neck from the filler neck grommet (4) on the top of the reservoir (5).
- Remove the filler neck and filler cap from the engine compartment as a unit.
