Removal And Installation: Removal

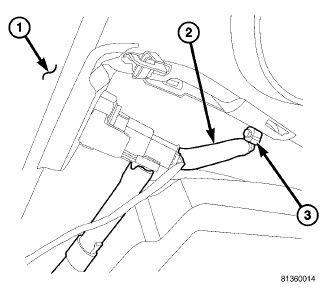

GC0095269Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Loosen front fascia as necessary on the side to be removed. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  3. Disconnect washer hose (2) from headlamp washer.
  4. Remove headlamp washer from front fascia (1).
