Removal And Installation: Installation

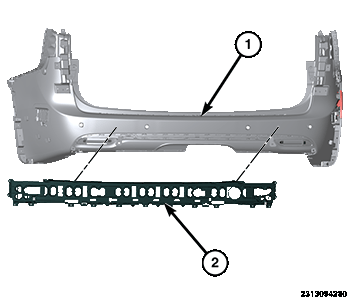

GC0178031Courtesy of CHRYSLER GROUP, LLC
  1. Position the energy absorber (2) back onto the fascia (1) and seat fully.

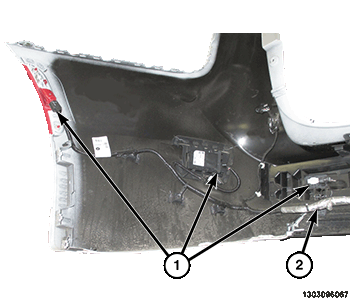

    GC0177746Courtesy of CHRYSLER GROUP, LLC
  2. Install the wire harness (2) and connect all the wire harness connectors (1).

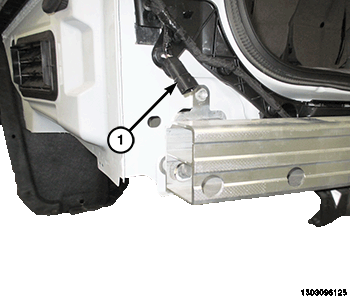

    GC0177896Courtesy of CHRYSLER GROUP, LLC
  3. Position the fascia back and connect any wire harness connectors (1) as necessary.

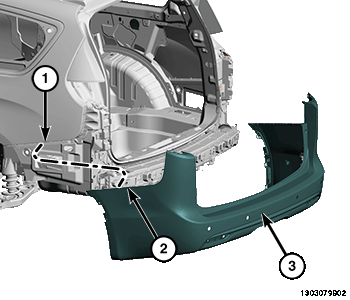

    GC0177655Courtesy of CHRYSLER GROUP, LLC
  4. Install the fascia (3) onto the vehicle and seat the attachment clips (2) onto the support brackets (1) fully.

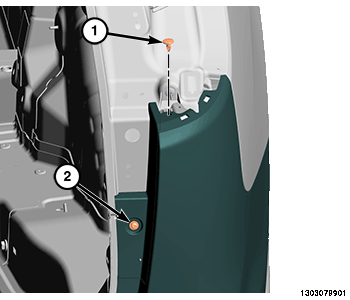

    GC0177823Courtesy of CHRYSLER GROUP, LLC
  5. Seat the upper clips fully and install the upper (1) and lower screws (2).
  6. Install the rear tail lamp assemblies. Refer to LAMP, TAIL, REMOVAL AND INSTALLATION .

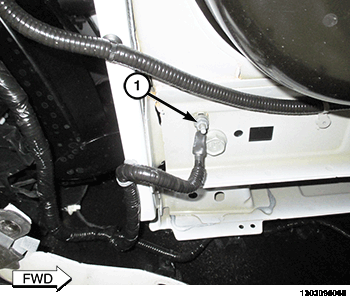

    GC0178346Courtesy of CHRYSLER GROUP, LLC
  7. Install the wire harness ground terminal and install the nut (1).

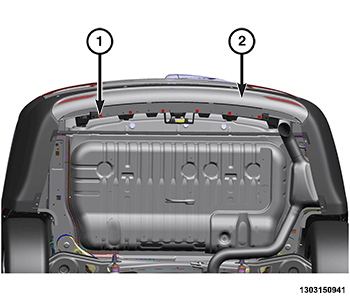

    GC0188613Courtesy of CHRYSLER GROUP, LLC
  8. Install the lower screws (1) that retain the lower side of the rear fascia.

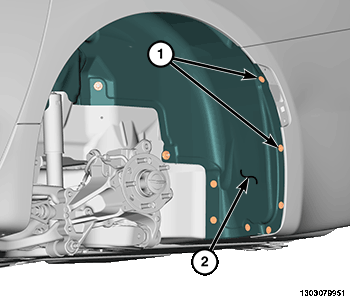

    GC0178144Courtesy of CHRYSLER GROUP, LLC
  9. Position the rear wheelhouse splash shield (2) back and install the screws (1).
  10. Install the rear belly pan. Refer to BELLY PAN, REAR, REMOVAL AND INSTALLATION .
  11. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
