Removal And Installation: Removal

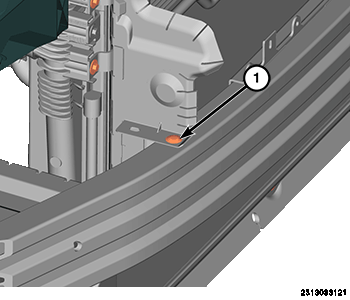

GC0177981Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  2. Remove the horn assemblies. Refer to HORN, REMOVAL AND INSTALLATION .
  3. Remove the hood latch and separate the cable from the crossmember. Refer to LATCH, HOOD, REMOVAL AND INSTALLATION .
  4. Remove the upper push pin fasteners (1) from the side covers.

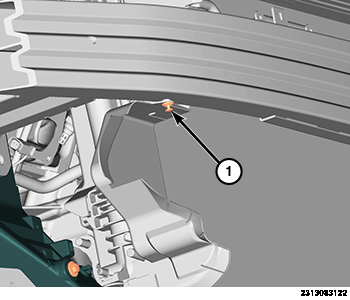

    GC0178240Courtesy of CHRYSLER GROUP, LLC
  5. Remove the lower push pin fasteners (1) from the side covers.

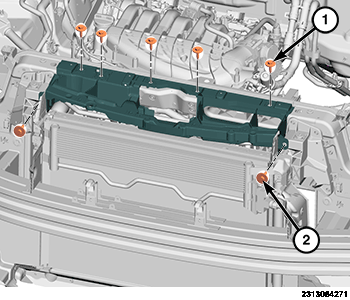

    GC0177855Courtesy of CHRYSLER GROUP, LLC
  6. Remove the upper (1) and lower bolts (2) from the radiator closeout panel.

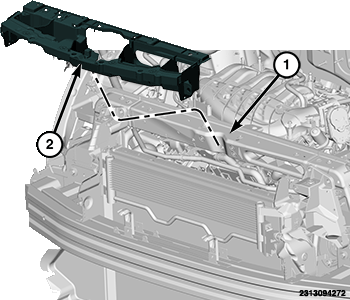

    GC0177709Courtesy of CHRYSLER GROUP, LLC
  7. Remove the radiator closeout panel (2) from the radiator crossmember (1).

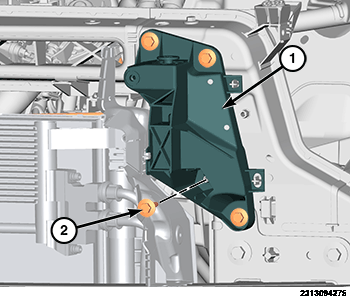

    GC0178345Courtesy of CHRYSLER GROUP, LLC
  8. Separate the side cover tabs.
  9. Remove the bolts (2) and remove the upper radiator support brackets (1).

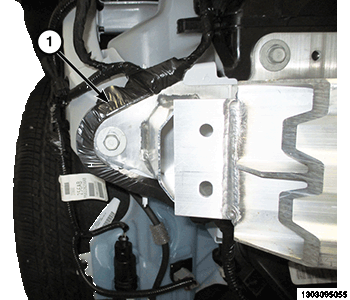

    GC0178388Courtesy of CHRYSLER GROUP, LLC
  10. Separate the wire harness (1) from the reinforcement from both sides.

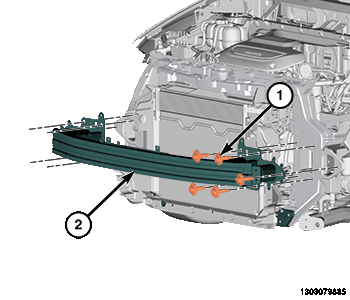

    GC0177502Courtesy of CHRYSLER GROUP, LLC
  11. Remove the bolts (1) and remove the bumper reinforcement (2).
