Removal And Installation: Installation

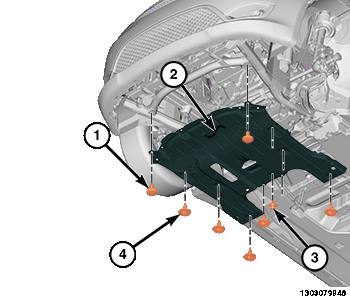

GC0177947Courtesy of CHRYSLER GROUP, LLC
  1. Install the engine belly pan (2).
  2. Install the push pin fastener (3).
  3. Install the front push pin fasteners (1)
  4. Install the screws (4) tighten the fasteners to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

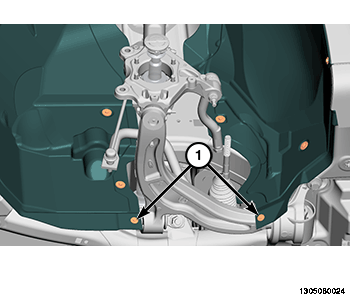

    GC0177919Courtesy of CHRYSLER GROUP, LLC
  5. Install the screws (1) attaching the wheelhouse splash shields to the engine belly pan.
  6. Install the front belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
