Removal And Installation: Removal

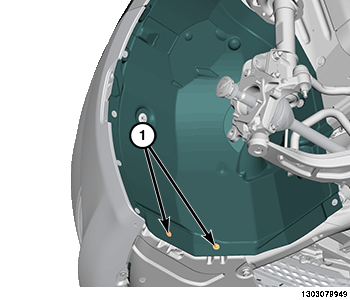

GC0177986Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the screws (1) attaching the wheelhouse splash shields to the front belly pan.

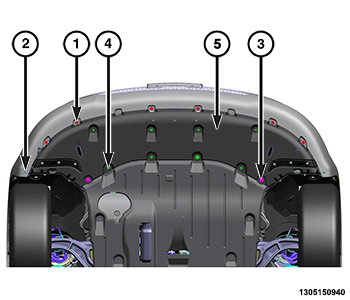

    GC0188620Courtesy of CHRYSLER GROUP, LLC
  3. Remove the front screws (1).
  4. Remove the two plastic rivets (2).
  5. Remove the push-pin fasteners (3).
  6. Remove the rear screws (4).

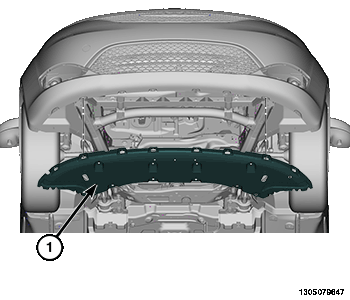

    GC0177802Courtesy of CHRYSLER GROUP, LLC
  7. Remove the front belly pan (1).
