Removal And Installation: Removal

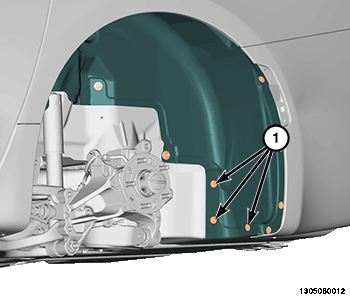

GC0177436Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear suspension belly pan. Refer to BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION .
  2. Remove the screws (1) securing the rear belly pan to the rear wheelhouse splash shield.

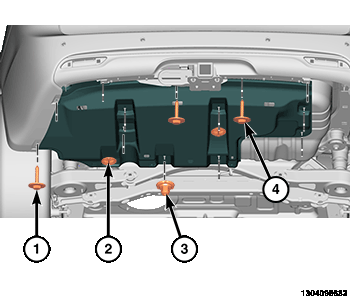

    GC0177676Courtesy of CHRYSLER GROUP, LLC
  3. Twist and release the decking aids (2).
  4. Remove the nuts (3) and remove the rear screws (4).
  5. Remove the side screws (1).
  6. Remove the rear belly pan.
