Removal And Installation: Removal

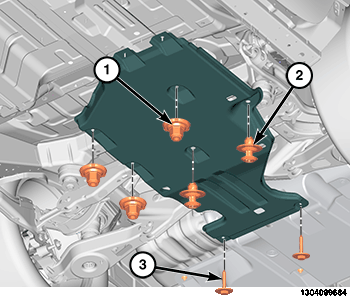

GC0178038Courtesy of CHRYSLER GROUP, LLC
  1. Remove the side belly pan. Refer to BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
  2. Remove the rear screws (3).
  3. Remove the nuts (1).
  4. Remove the push-pin fasteners (2) and remove the belly pan.
