Camshaft, Engine: Inspection

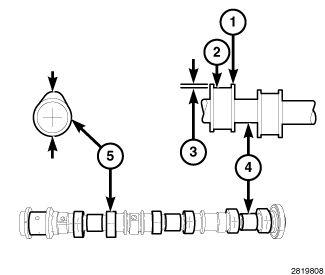

GC0144336Courtesy of CHRYSLER GROUP, LLC
NOTE:

RH intake camshaft shown in illustration, other camshafts similar.

  1. Inspect camshaft bearing journals (4) for damage and binding. If journals are binding, check the cylinder head for damage. Also check cylinder head oil holes for clogging.
  2. Check the surface of the cam lobes (5) for abnormal wear (3). Measure and compare the unworn area (1) to the worn area (2). Replace camshafts that are not within specification. Refer to TECHNICAL SPECIFICATIONS .
