Removal And Installation: Right: Removal

NOTE:

The magnetic timing wheels must not come in contact with magnets (pickup tools, trays, ect.) or any other strong magnetic field. This will destroy the timing wheels ability to correctly relay camshaft position to the camshaft position sensor.

  1. Remove the right cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION .
  2. Remove all the left spark plugs. Refer to SPARK PLUG, REMOVAL AND INSTALLATION .
    GC0144994Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    When aligning timing marks, always rotate engine by turning the crankshaft. Failure to do so will result in valve or piston damage.

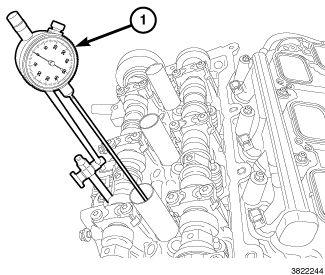

  3. Mount the Dial Indicator Set (special tool #C-3339A, Set, Dial Indicator) (1) to a stationary point on the engine, such as the cylinder head cover mounting surface. Position the indicator probe into the number one cylinder, rotate the crankshaft clockwise (as viewed from the front) to place the number one piston at top-dead-center on the exhaust stroke and set the indicator dial to zero.
    GC0173631Courtesy of CHRYSLER GROUP, LLC
  4. The right side cam phaser ARROWS  (1) should point away from each other and the SCRIBE LINES  (2) should be parallel to the cylinder head cover mounting surface (3) when the right side number one cylinder piston is positioned at top-dead-center on the exhaust stroke.
    GC0144982Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The phaser markings (1 and 3) could align with either an external or internal chain link. Either alignment is acceptable as long as there are twelve chain pins (2) between the markings.

  5. There should be twelve chain pins (2) BETWEEN  the exhaust cam phaser mark (1) and the intake cam phaser mark (3) as viewed from either the front or rear of the cam phasers.
    GC0173698Courtesy of CHRYSLER GROUP, LLC

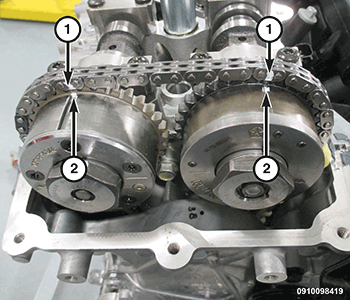

  6. Mark both sides of the timing chain (1) at the phaser timing marks (2) using a paint pen or equivalent to aid in reassembly.
    GC0173721Courtesy of CHRYSLER GROUP, LLC

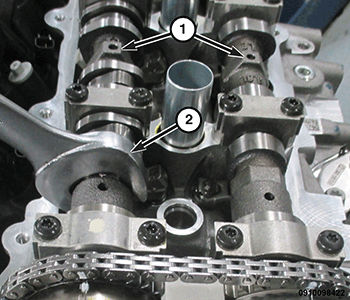

  7. The camshafts should be at top-dead-center, with the alignment holes (1) positioned vertically.
    NOTE:

    It may be necessary to rock the camshaft slightly (a few degrees) with a wrench (2) when installing the camshaft holder.

    GC0173682Courtesy of CHRYSLER GROUP, LLC
  8. Install the (special tool #2025200090, Holder, Camshaft) (1).
    GC0173749Courtesy of CHRYSLER GROUP, LLC
  9. Install the (special tool #2025102090, Holder, Camshaft Phaser - Right-Rear Cyl Head) (2) against the cylinder head cover mounting surface between the intake and exhaust phasers (1), with the tool number facing up.
    GC0173566Courtesy of CHRYSLER GROUP, LLC
  10. Loosen, but do not remove, the exhaust oil control valve (1).
    GC0173641Courtesy of CHRYSLER GROUP, LLC
  11. Loosen, but do not remove, the intake oil control valve (1).
  12. Remove the (special tool #2025102090, Holder, Camshaft Phaser - Right-Rear Cyl Head).
    GC0173581Courtesy of CHRYSLER GROUP, LLC
  13. Insert the (special tool #2025002090, Holder, Timing Chain Tensioner, Right-Rear) (1) into place between the cylinder head boss and the tensioner arm to hold the tensioner in the compressed position. The Timing Chain Tensioner Holder remains in place while the phasers are removed.
    GC0173729Courtesy of CHRYSLER GROUP, LLC
  14. Remove the oil control valve and pull the right side exhaust cam phaser (2) off of the camshaft while supporting the timing chain (1).
    GC0173571Courtesy of CHRYSLER GROUP, LLC
  15. Remove the oil control valve and pull the right side intake cam phaser (1) off of the camshaft while supporting the timing chain (2).
