Redundant Latch Single Button Type Fitting:

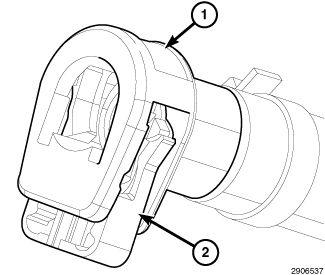

This type of quick-connect fitting is equipped with a redundant latch (2) and a single push button (1) that releases two internal latches located in the quick-connect fitting. Special tools are not required for removal.
CAUTION:
Do not pry or pull up on the push button as damage to the latches of the quick-connect fitting will occur.

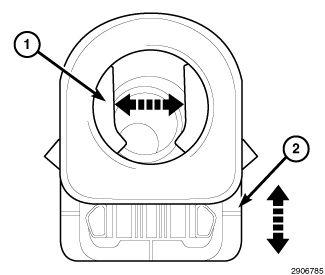

- Pull the redundant latch (2) out away from the quick-connect fitting.
- Press on the push button with your thumb, release the internal latches (1) and remove the quick-connect fitting from the fuel system component.
