Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the left rear wheel splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
    GC0177741Courtesy of CHRYSLER GROUP, LLC

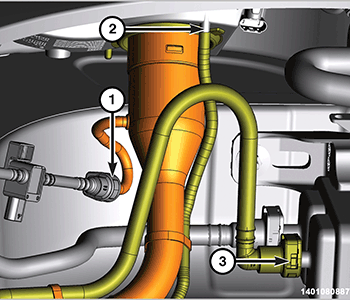

  3. Disconnect the fuel tank pressure sensor quick connect fitting (1) from the fuel tank filler tube. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .
  4. Disconnect the fuel vapor line (3) quick connect fitting from the vapor canister. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .
  5. Disconnect the fuel drain hose (2).
    GC0178287Courtesy of CHRYSLER GROUP, LLC

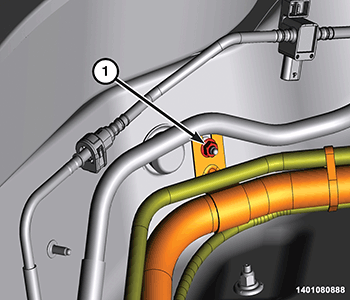

  6. Remove the upper fastener (1) securing the fuel filler tube.
    GC0177782Courtesy of CHRYSLER GROUP, LLC

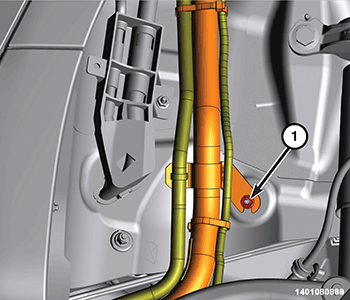

  7. Remove the lower fastener (1) securing the fuel filler tube.
    GC0177927Courtesy of CHRYSLER GROUP, LLC

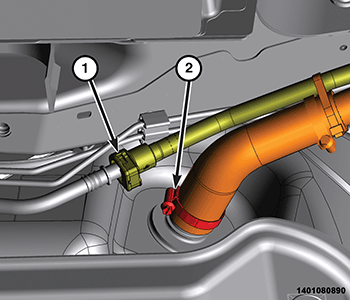

  8. Disconnect the fuel vapor line (1) quick connect fitting. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .
  9. Loosen the hose clamp (2) and remove the fuel tank fill tube from the vehicle.
