Removal And Installation: Cranking: Removal

Disengage the retainers and remove the air inlet duct. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

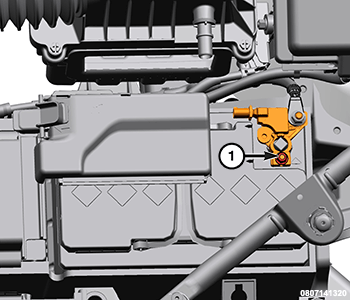

Disconnect and remove the Intelligent Battery Sensor (IBS) (1) effectively disconnecting the negative battery cable.
NOTE:
Do not to pry on the IBS to remove as it may damage the sensor

Courtesy of CHRYSLER GROUP, LLC

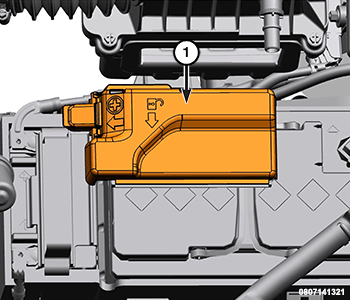

Open the jump post stud cover (1).

Courtesy of CHRYSLER GROUP, LLC

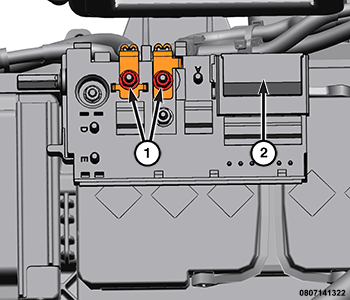

Remove the nuts (1) securing the cables to the pre-fuse assembly.
Disconnect the cables connectors (2) from the pre-fuse assembly.

Courtesy of CHRYSLER GROUP, LLC

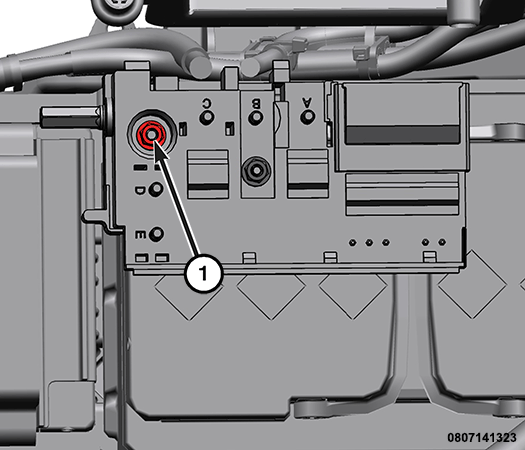

Loosen the nut (1) securing the pre-fuse assembly to the battery.

Courtesy of CHRYSLER GROUP, LLC

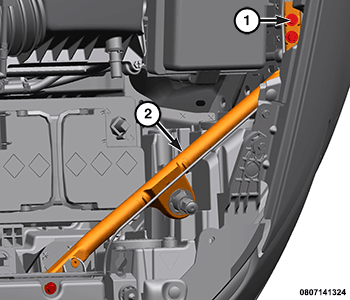

Remove the three bolts (1) and remove the support bracket (2).

Courtesy of CHRYSLER GROUP, LLC

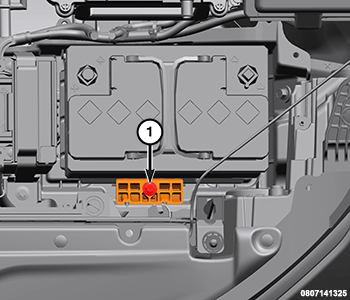

Remove the bolt (1) securing the battery hold down.
Remove the battery.
If replacing the battery, remove the battery thermal cover from the battery.
