Removal And Installation: Supplemental: Removal

Confirm that all electrical accessories are switched off.
Switch the ignition to the OFF position.
Disengage the retainers and remove the air inlet duct. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Disconnect and remove the Intelligent Battery Sensor (IBS) (1) effectively disconnecting the negative battery cable.
NOTE:
Do not to pry on the IBS to remove as it may damage the sensor

Courtesy of CHRYSLER GROUP, LLC
Open the jump post stud cover (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (1) securing the cables to the pre-fuse assembly.
Disconnect the cables connectors (2) from the pre-fuse assembly.

Courtesy of CHRYSLER GROUP, LLC
Loosen the nut (1) and remove the pre-fuse assembly from the battery.

Courtesy of CHRYSLER GROUP, LLC

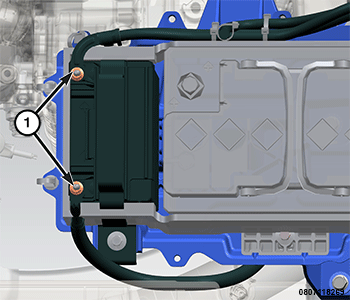

Disconnect the supplemental negative and positive battery cables (1) and position aside.

Courtesy of CHRYSLER GROUP, LLC

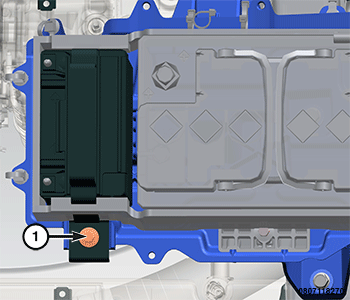

Remove the battery hold down nut (1).

Courtesy of CHRYSLER GROUP, LLC

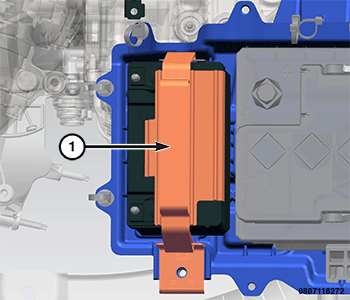

Remove the battery hold down bracket (1).
WARNING:
Wear a suitable pair of rubber gloves when removing a battery by hand. Safety glasses should also be worn. If the battery is cracked or leaking, the electrolyte can burn the skin and eyes.

Courtesy of CHRYSLER GROUP, LLC

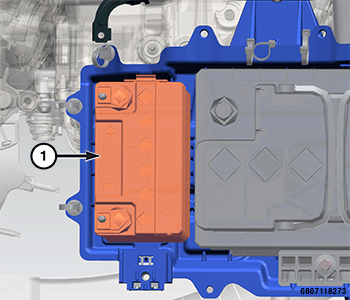

Remove the supplemental battery (1) from the vehicle.
