Removal And Installation: Installation

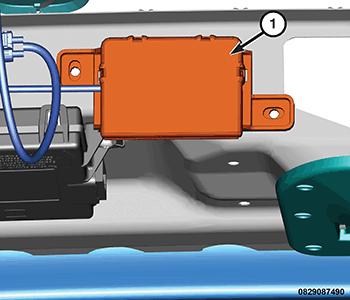

GC0177565Courtesy of CHRYSLER GROUP, LLC
  1. Position the remote start antenna (1) to the vehicle for installation.

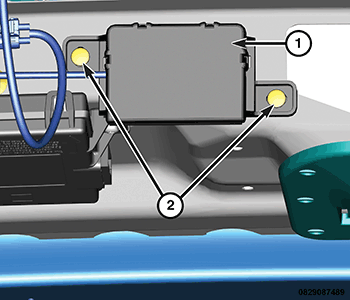

    GC0178205Courtesy of CHRYSLER GROUP, LLC
  2. Using fasteners (2), secure the remote start antenna (1) to the vehicle.
  3. Connect the remote start antenna to the Radio Frequency Hub (RFH).
  4. Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable.
