Removal And Installation: Removal

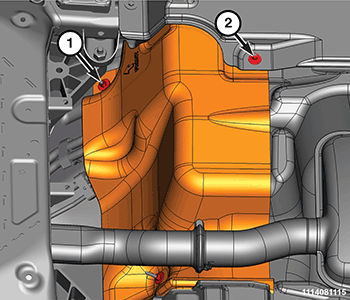

GC0177480Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fasteners (2) and position the belly pans aside. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION , BELLY PAN, FRONT, REMOVAL AND INSTALLATION , BELLY PAN, REAR, REMOVAL AND INSTALLATION , BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION and/or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
  2. Remove the dash heat shield fasteners (1) and remove the dash heat shield.
  3. Remove the muffler assembly. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

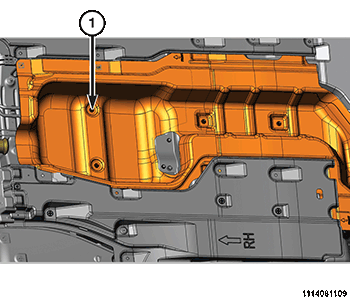

    GC0177323Courtesy of CHRYSLER GROUP, LLC
  4. Remove the front muffler heat shield fasteners (1).

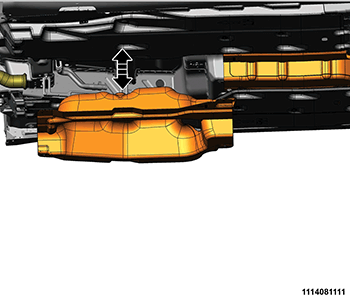

    GC0178294Courtesy of CHRYSLER GROUP, LLC
  5. With the underbody belly pans positioned aside, remove the front muffler heat shield.

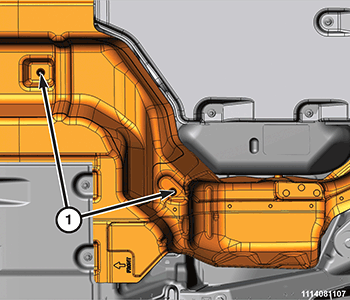

    GC0177309Courtesy of CHRYSLER GROUP, LLC
  6. Remove the tub heat shield fasteners (1).

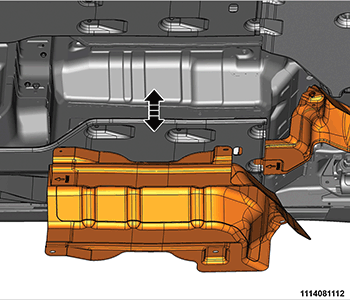

    GC0178109Courtesy of CHRYSLER GROUP, LLC
  7. Remove the tub heat shield.

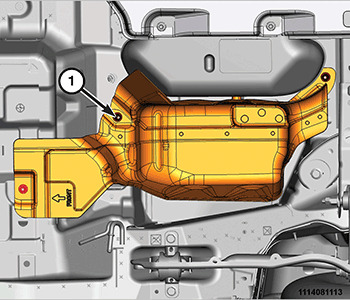

    GC0178326Courtesy of CHRYSLER GROUP, LLC
  8. Remove the mid-muffler heat shield fasteners (1) and remove the mid-muffler heat shield.

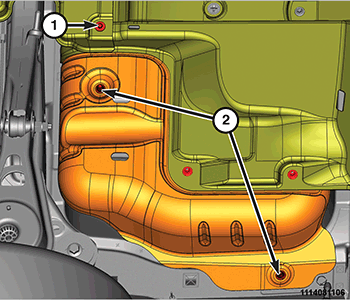

    GC0177520Courtesy of CHRYSLER GROUP, LLC
  9. Remove the fasteners (1) and reposition the rear underbody belly pan. Refer to BELLY PAN, REAR, REMOVAL AND INSTALLATION or BELLY PAN, REAR SUSPENSION, REMOVAL AND INSTALLATION .
  10. Remove the rear muffler heat shield fasteners (2).

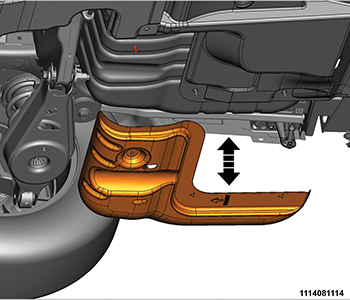

    GC0177643Courtesy of CHRYSLER GROUP, LLC
  11. Remove the rear muffler heat shield.
