Lamp, Cargo, Flood: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Open the liftgate to access the cargo flood lamp trim panel.

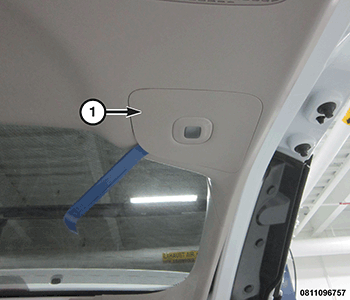

- Using trim stick C-4755 or equivalent, remove the cargo flood lamp trim panel (1) from the liftgate trim panel.
- Disconnect the wiring harness connection (1) from the lamp.
- Using trim stick C-4755 or equivalent, separate the cargo flood lamp bezel from the cargo flood lamp.
