Lamp, Cargo, Flood: Installation

  1. Position the cargo flood lamp to the cargo flood lamp trim panel and snap the lamp bezel onto the cargo lamp.
    GC0177198Courtesy of CHRYSLER GROUP, LLC

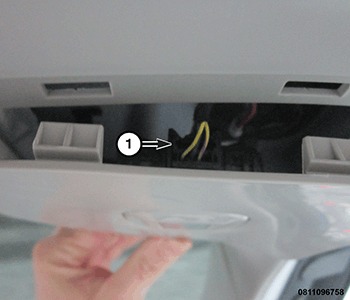

  2. Connect the liftgate wiring harness connector (1) to the cargo flood lamp.
  3. Install the cargo flood lamp trim panel into the liftgate trim panel.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
